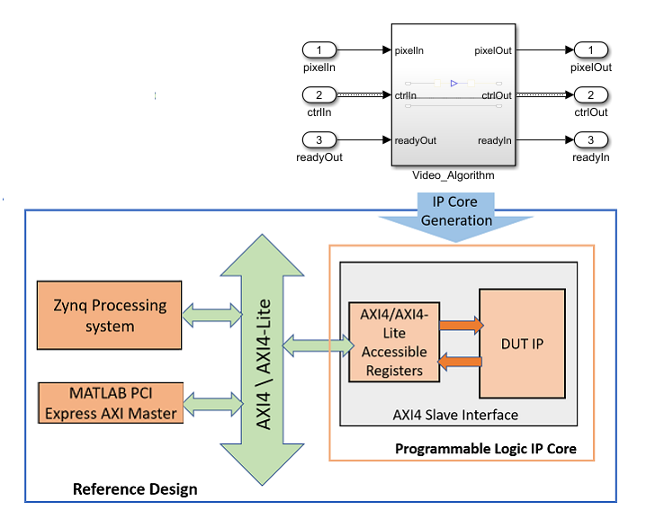

You can define multiple AXI Master interfaces in your custom reference design and access the AXI4 slave interfaces in the generated HDL DUT IP core for the DUT. This capability enables you to simultaneously connect the HDL DUT IP core to two or more AXI Master IP in the reference design, such as the HDL Verifier™ JTAG AXI Master IP and the ARM® processor in the Zynq® processing system.
To define multiple AXI Master interfaces, you specify the
BaseAddressSpace
and MasterAddressSpace
for each AXI Master instance, and also the IDWidth
property.
IDWidth
is the width of all ID
signals, such as AWID
, WID
,
ARID
, and RID
, specified as a positive
integer. By default, the IDWidth
is 12
,
which enables you to specify one AXI Master interface connection to the DUT IP core.
To connect the DUT IP core to multiple AXI Master interfaces, you may have to
increase the IDWidth
. The IDWidth
value is
tool-specific. To see the value that you must use when specifying more than one AXI
Master interface, refer to the documentation for that tool. If you use an incorrect
ID width, the synthesis tool generates an error, and reports the correct
IDWidth
that you must use.
This code is the syntax for the MasterAddressSpace
field when
specifying multiple AXI Master interfaces in Vivado®-based reference
designs:
'MasterAddressSpace', ... {'AXI Master Instance Name1/Address Space of Instance Name1', ... 'AXI Master Instance Name2/Address_Space of Instance Name2',...};
For example, this code illustrates how you can modify the
plugin_rd
file to define two AXI Master interfaces.
% ... %% Add custom design files % add custom Vivado design hRD.addCustomVivadoDesign( ... 'CustomBlockDesignTcl', 'system_top.tcl', ... 'VivadoBoardPart', 'xilinx.com:zc706:part0:1.0'); % ... % ... % The DUT IP core in this reference design is connected % to both Zynq Processing System and the MATLAB as AXI % Master IP. Because of 2 AXI Master, ID width % has to be increased from 12 to 13. hRD.addAXI4SlaveInterface( ... 'InterfaceConnection', 'axi_interconnect_0/M00_AXI', ... 'BaseAddress', {'0x40010000', '0x40010000'}, ... 'MasterAddressSpace', {'processing_system7_0/Data', 'hdlverifier_axi_master_0/axi4m'}, ... 'IDWidth', 13); % ...
In this example, the two AXI Master IP are the HDL Verifier MATLAB as AXI Master IP and the ARM processor. Based on the syntax of
the MasterAddressSpace
, for the HDL Verifier MATLAB as AXI Master IP, the AXI Master Instance
Name
is hdlverifier_axi_master_0
and the
Address_Space of Instance Name
is
axi4m
.
The AXI4 slave interfaces in the HDL DUT IP core connect to the Xilinx® AXI Interconnect IP that is defined by the
InterfaceConnection
property of the
addAXI4SlaveInterface
method. The AXI4 slave interfaces have a
BaseAddress
. This BaseAddress
must map to
the MasterAddressSpace
for the two AXI Master IP, which is
specified as a cell array of character vectors.
You must make sure that the AXI Master IPs have already been included in the
Vivado reference design project. system_top.tcl
is the TCL
file that is defined by the CustomBlockDesignTcl
property of
the addCustomVivadoDesign
method. In
this TCL file, you must make sure that the two AXI Master IP are connected to the
same Xilinx AXI Interconnect IP. The interconnects then connect the AXI Master IPs
to the AXI4 slave interfaces in the HDL IP core.
After you run the IP Core Generation
workflow and create the
Vivado project, open the project. In the Vivado project, if you open the block design, you see the two AXI Master IP
connected to the HDL DUT IP core. If you select the Address
Editor tab, you see the AXI Master instance names and the
corresponding address spaces.
To define multiple AXI Master interfaces, you specify the
InterfaceConnection
and BaseAddressSpace
for each AXI Master instance, and also the IDWidth
property. This
code is the syntax for the InterfaceConnection
field when
specifying multiple AXI Master interfaces in Qsys™-based
reference
designs:
'InterfaceConnection', ... {'AXI Master Instance Name1/Port name of Instance Name1', ... 'AXI Master Instance Name2/Port name of Instance Name1', ...};
For example, this code illustrates how you can modify the
plugin_rd
file to define three AXI Master
interfaces.
% ... %% Add custom design files % add custom Qsys design hRD.addCustomQsysDesign('CustomQsysPrjFile', 'system_soc.qsys'); hRD.CustomConstraints = {'system_soc.sdc','system_setup.tcl'}; % ... % add AXI4 slave interfaces hRD.addAXI4SlaveInterface( ... 'InterfaceConnection', {'hps_0.h2f_axi_master','master_0.master','MATLAB_as_AXI_Master_0.axm_m0'}, ... 'BaseAddress', {'0x0000_0000','0x0000_0000','0x0000_0000'},... 'InterfaceType', 'AXI4'... 'IDWidth', 14); % ...
Based on the syntax of the InterfaceConnection
option, for the
HDL Verifier MATLAB as AXI Master IP, the AXI Master Instance
Name
is MATLAB_as_AXI_Master_0
and the
Port name
is axm_m0
. For each AXI Master
IP, the BaseAddress
of the HDL IP core and
InterfaceConnection
must be specified as a cell array of
character vectors.
You must make sure that the AXI Master IPs have already been included in the Qsys
reference design project. system_soc.qsys
is the file that is
defined by the CustomQsysPrjFile
property of the addCustomQsysDesign
method. In this
file, you must make sure that the two AXI Master IP are connected to the same Qsys
AXI Interconnect IP.
The interconnects then connect the AXI Master IPs to the AXI4 slave interfaces in the HDL IP core.
After you run the IP Core Generation
workflow and create the
Quartus® project, open the project. In the Quartus project, you see the three AXI Master IP and the AXI Master interfaces

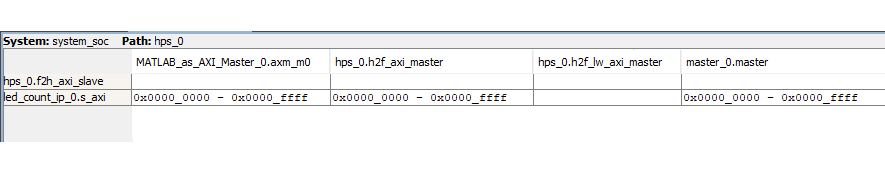

connected to the HDL IP core for the DUT. If you select the Address
Map tab, you see the AXI Master instance names, the port names, and
the corresponding address spaces.
