tnodes
Determine terminal nodes
Syntax
N = tnodes(T)
N = tnodes(T,'deppos')
[N,K] = tnodes(T)
[N,K]
= tnodes(T,'deppos'), M = N(K)
Description
tnodes is a tree-management
utility.
N = tnodes( returns
the indices of terminal nodes of the tree T)T. N is
a column vector.
The nodes are numbered from left to right and from top to bottom. The root index is 0.
N = tnodes( returns
a matrix T,'deppos')N, which contains the depths and positions
of terminal nodes.
N(i,1) is the depth of the i-th
terminal node. N(i,2) is the position of the i-th
terminal node.
For [N,K] = tnodes( or T)[N,K]
= tnodes( are
the indices reordered as in tree T,'deppos'), M = N(K)T, from
left to right.
Examples

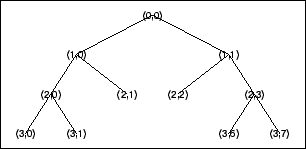

% Create initial tree. ord = 2; t = ntree(ord,3); % Binary tree of depth 3. t = nodejoin(t,5); t = nodejoin(t,4); plot(t)
% Change Node Label from Depth_Position to Index
% (see the plot function).
% List terminal nodes (index).
tnodes(t)
ans =
4
5
7
8
13
14
% List terminal nodes (Depth_Position).
tnodes(t,'deppos')
ans =
2 1
2 2
3 0
3 1
3 6
3 7
Introduced before R2006a
