nodedesc
Node descendants
Syntax
D = nodedesc(T,N)
D = nodedesc(T,N,'deppos')
Description
nodedesc is a tree-management
utility.
D = nodedesc( returns
the indices of all the descendants of the node T,N)N in
the tree T where N can
be the index node or the depth and position of node. D is
a column vector with D(1) = index of node N.
D = nodedesc( is
a matrix that contains the depths and positions of all descendants. T,N,'deppos')D(i,1) is
the depth of the i-th descendant and D(i,2) is
the position of the i-th descendant.
The nodes are numbered from left to right and from top to bottom. The root index is 0.
Examples

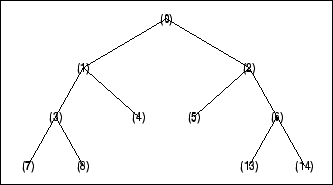

% Create binary tree of depth 3. t = ntree(2,3); t = nodejoin(t,5); t = nodejoin(t,4); plot(t)
% Change Node Label from Depth_Position to Index
% (see the plot function).
% Node descendants.
nodedesc(t,2)
ans =
2
5
6
13
14
nodedesc(t,2,'deppos')
ans =
1 1
2 2
2 3
3 6
3 7
nodedesc(t,[1 1],'deppos')
ans =
1 1
2 2
2 3
3 6
3 7
nodedesc(t,[1 1])
ans =
2
5
6
13
14
Introduced before R2006a
