Generate Target-Independent HDL Code with Native Floating-Point

HDL Coder™ native floating-point technology can generate target-independent HDL code from your floating-point design. You can synthesize your floating-point design on any generic FPGA or ASIC. Floating-point designs have better precision, higher dynamic range, and a shorter development cycle than fixed-point designs. If your design has complex math and trigonometric operations, use native floating-point technology.

How HDL Coder Generates Target-Independent HDL Code

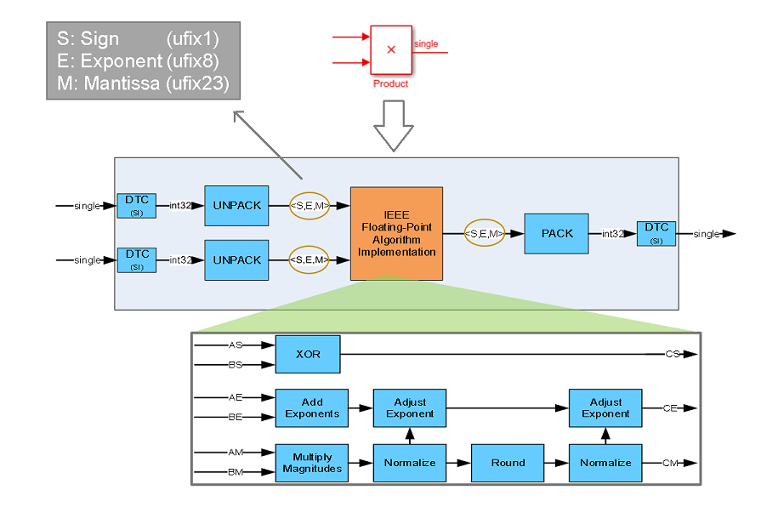

This figure shows how HDL Coder generates code with the native floating-point technology.

The Unpack and Pack blocks convert the floating-point types to the sign, exponent, and mantissa. In the figure, S, E, and M represent the sign, exponent, and mantissa respectively. This interpretation is based on the IEEE-754 standard of floating-point arithmetic.

The Floating-Point Algorithm Implementation block performs computations on the S, E, and M. With this conversion, the generated HDL code is target-independent. You can deploy the design on any generic FPGA or an ASIC.

Enable Native Floating Point and Generate Code

You can generate code in the Configuration Parameters dialog box or at the command line.

To specify the native floating-point settings and generate HDL code in the Configuration Parameters dialog box:

In the Apps tab, select HDL Coder. The HDL Code tab appears.
Click Settings. In the HDL Code Generation > Floating Point pane, for Library, select Native Floating Point.
Specify the Latency Strategy to map your design to maximum or minimum latency or no latency.
If you have denormal numbers in your design, select Handle Denormals. Denormal numbers are numbers that have an exponent field equal to zero and a nonzero mantissa field. See Handle Denormals.
If your design has multipliers, to specify how you want HDL Coder to implement the multiplication operation, use the Mantissa Multiplier Strategy. See Mantissa Multiplier Strategy.
To share floating-point resources, on the HDL Code Generation > Optimizations > Resource Sharing tab, make sure that you select Floating-point IPs. The number of blocks that get shared depends on the SharingFactor that you specify for the subsystem.
Click Apply. In the HDL Code tab, click Generate HDL Code.

To generate HDL code at the command line, use the hdlcoder.createFloatingPointTargetConfig function. You can use this function to create an hdlcoder.FloatingPointTargetConfig object for the native floating-point library.

nfpconfig = hdlcoder.createFloatingPointTargetConfig('NATIVEFLOATINGPOINT');
hdlset_param('sfir_single', 'FloatingPointTargetConfiguration', nfpconfig);

Optionally, you can specify the latency strategy and whether you want HDL Coder to handle denormal numbers in your design:

nfpconfig.LibrarySettings.HandleDenormals = 'on';
nfpconfig.LibrarySettings.LatencyStrategy = 'MAX';

To learn how you can verify the generated code, see Verify the Generated Code from Native Floating-Point.

View Code Generation Report

To view the code generation reports of floating-point library mapping, before you begin code generation, enable generation of the Resource Utilization Report and Optimization Report. To enable the reports, on the HDL Code tab, click Settings > Report Optionsin the Configuration Parameters dialog box, on the HDL Code Generation pane, enable Generate resource utilization report and Generate optimization report. See also Create and Use Code Generation Reports.

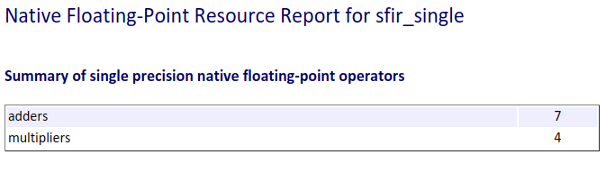

To see the list of native floating-point operators that HDL Coder supports and the floating-point operators to which your Simulink^® blocks mapped to, in the Code Generation Report, select Native Floating-Point Resource Report.

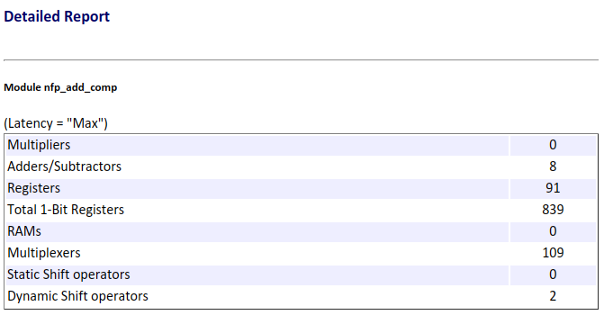

A detailed report shows the various resources that the floating-point blocks use on the target device that you specify. See also Create and Use Code Generation Reports.

To see the native floating-point settings that you applied to the model and whether HDL Coder successfully generated HDL code, in the Code Generation Report, select Target Code Generation.

Analyze Results

Floating point operators have a latency. If your Simulink model does not have delays, when you generate HDL code, the code generator figures out the operator latency and delay balances parallel paths. Consider this Simulink model that has two single inputs and gives a single output.

The MATLAB Function block in the Simulink model contains this code.

function y = fcn(u, w)
%#codegen

y1 = (u+w) * 20;
y2 = w^16;
y3 = (u-w) / 10;
y = y1 + y2 - y3;

When you generate HDL code, the code generator maps the blocks in your Simulink model to synthesizable native floating-point operators. To see how the code generator implemented the floating-point operations, open the generated model. The blocks NFP math, NFP Sqrt, and NFP trig correspond to the floating-point implementation of the Reciprocal Sqrt, Reciprocal, sin, and cos blocks respectively in your original model.

Every floating-point operator has a latency. The code generator inserted an additional matching delay because the latency of the Reciprocal Sqrt is 30 and latency of Reciprocal is 31. The operator latency is equal to the Delay length of the Delay block inside that NFP block. For example, if you double-click the NFP sqrt block, you can get the latency by looking at the Delay length of the Delay block. See Latency Values of Floating Point Operators.

When you use MATLAB Function blocks with floating-point data types, HDL Coder uses the MATLAB Datapath architecture. This architecture treats the MATLAB Function block like a regular Subsystem block. When you generate code, the code generator maps the basic operations such as addition and multiplication to the corresponding native floating-point operators. Open the MATLAB Function subsystem to see how the code generator implemented the MATLAB Function block.

To learn more about the generated model, see Generated Model and Validation Model.

Limitation

To generate HDL code in native floating-point mode, use discrete sample times. Blocks operating at a continuous sample time are not supported.
