Mean

Find mean value of input or sequence of inputs

expand all in page
  • Library:

  • DSP System Toolbox / Statistics

  • Mean block

Description

The Mean block computes the mean of each row or column of the input, or along vectors of a specified dimension of the input. It can also compute the mean of the entire input. You can specify the dimension using the Find the mean value over parameter. The Mean block can also track the mean value in a sequence of inputs over a period of time. To track the mean value in a sequence of inputs, select the Running mean parameter.

Note

The Running mode in the Mean block will be removed in a future release. To compute the running mean in Simulink®, use the Moving Average block instead.

Ports

Input

expand all

The block accepts real-valued or complex-valued multichannel and multidimensional inputs. The input data type must be double precision, single precision, integer, or fixed point with power-of-two slope and zero bias.

This port is unnamed until you select the Running mean parameter and set the Reset port parameter to any option other than None.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | fixed point
Complex Number Support: Yes

Specify the reset event that causes the block to reset the running mean. The sample time of the Rst input must be a positive integer multiple of the input sample time.

Dependencies

To enable this port, select the Running mean parameter and set the Reset port parameter to any option other than None.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | Boolean

Output

expand all

The data type of the output matches the data type of the input.

When you do not select the Running mean parameter, the block computes the mean value in each row or column of the input, or along vectors of a specified dimension of the input. It can also compute the mean of the entire input at each individual sample time. Each element in the output array y is the mean value of the corresponding column, row, or entire input. The output array y depends on the setting of the Find the mean value over parameter. Consider a three-dimensional input signal of size M-by-N-by-P. When you set Find the mean value over to:

  • Entire input — The output at each sample time is a scalar that contains the mean value of the M-by-N-by-P input matrix.

  • Each row — The output at each sample time consists of an M-by-1-by-P array, where each element contains the mean value of each vector over the second dimension of the input. For an M-by-N matrix input, the output at each sample time is an M-by-1 column vector.

  • Each column — The output at each sample time consists of a 1-by-N-by-P array, where each element contains the mean value of each vector over the first dimension of the input. For an M-by-N matrix input, the output at each sample time is a 1-by-N row vector.

    In this mode, the block treats length-M unoriented vector inputs as M-by-1 column vectors.

  • Specified dimension — The output at each sample time depends on the value of the Dimension parameter. If you set the Dimension to 1, the output is the same as when you select Each column. If you set the Dimension to 2, the output is the same as when you select Each row. If you set the Dimension to 3, the output at each sample time is an M-by-N matrix containing the mean value of each vector over the third dimension of the input.

When you select Running mean, the block tracks the mean value of each channel in a time sequence of inputs. In this mode, you must also specify a value for the Input processing parameter.

  • Elements as channels (sample based) — The block treats each element of the input as a separate channel. For a three-dimensional input signal of size M-by-N-by-P, the block outputs an M-by-N-by-P array. Each element yijk of the output contains the mean value of the element uijk for all inputs since the last reset.

    When a reset event occurs, the running mean yijk in the current frame is reset to the element uijk.

  • Columns as channels (frame based) — The block treats each column of the input as a separate channel. This option does not support an N-dimensional input signal, where N > 2. For a two-dimensional input signal of size M-by-N, the block outputs an M-by-N matrix. Each element yij of the output contains the mean of the values in the jth column of all inputs since the last reset, up to and including the element uij of the current input.

    When a reset event occurs, the running mean for each channel becomes the mean value of all the samples in the current input frame, up to and including the current input sample.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | fixed point
Complex Number Support: Yes

Parameters

expand all

Main Tab

When you select the Running mean parameter, the block tracks the mean value of each channel in a time sequence of inputs.

  • Each column — The block outputs the mean value over each column.

  • Each row — The block outputs the mean value over each row.

  • Entire input — The block outputs the mean value over the entire input.

  • Specified dimension — The block outputs the mean value over the dimension, specified in the Dimension parameter.

Dependencies

To enable this parameter, clear the Running mean parameter.

Specify the dimension (one-based value) of the input signal over which the mean is computed. The value of this parameter must be greater than 0 and less than the number of dimensions in the input signal.

Dependencies

To enable this parameter, set Find the mean value over to Specified dimension.

  • Columns as channels (frame based) — The block treats each column of the input as a separate channel. This option does not support an N-dimensional input signal, where N > 2. For a two-dimensional input signal of size M-by-N, the block outputs an M-by-N matrix. Each element yij of the output contains the mean of the values in the jth column of all inputs since the last reset, up to and including the element uij of the current input.

    When a reset event occurs, the running mean for each channel becomes the mean value of all the samples in the current input frame, up to and including the current input sample.

  • Elements as channels (sample based) — The block treats each element of the input as a separate channel. For a three-dimensional input signal of size M-by-N-by-P, the block outputs an M-by-N-by-P array. Each element yijk of the output contains the mean value of the element uijk for all inputs since the last reset.

    When a reset event occurs, the running mean yijk in the current frame is reset to the element uijk.

    Variable-Size Inputs

    When your inputs are of variable size, and you select the Running mean parameter, then:

    • If you set the Input processing parameter to Elements as channels (sample based), the state is reset.

    • If you set the Input processing parameter to Columns as channels (frame based), then:

      • When the input size difference is in the number of channels (number of columns), the state is reset.

      • When the input size difference is in the length of channels (number of rows), there is no reset and the running operation is carried out as usual.

Dependencies

To enable this parameter, select the Running mean parameter.

The block resets the running mean whenever a reset event is detected at the optional Rst port. The reset sample time must be a positive integer multiple of the input sample time.

When a reset event occurs while the Input processing parameter is set to Elements as channels (sample based), the running mean for each channel is initialized to the value in the corresponding channel of the current input. Similarly, when the Input processing parameter is set to Columns as channels (frame based), the running mean for each channel becomes the mean value of all the samples in the current input frame, up to and including the current input sample.

Use this parameter to specify the reset event.

  • None — Disables the Rst port.

  • Rising edge — Triggers a reset operation when the Rst input does one of the following:

    • Rises from a negative value to either a positive value or zero.

    • Rises from zero to a positive value, where the rise is not a continuation of a rise from a negative value to zero.

  • Falling edge — Triggers a reset operation when the Rst input does one of the following:

    • Falls from a positive value to a negative value or zero.

    • Falls from zero to a negative value, where the fall is not a continuation of a fall from a positive value to zero.

  • Either edge — Triggers a reset operation when the Rst input is a Rising edge or Falling edge.

  • Non-zero sample — Triggers a reset operation at each sample time, when the Rst input is not zero.

Note

When running simulations in the Simulink multitasking mode, reset signals have a one-sample latency. Therefore, when the block detects a reset event, there is a one-sample delay at the reset port rate before the block applies the reset. For more information on latency and the Simulink tasking modes, see Excess Algorithmic Delay (Tasking Latency) and Time-Based Scheduling and Code Generation (Simulink Coder).

Dependencies

To enable this parameter, select the Running mean parameter.

Data Types Tab

Note

To use these parameters, the data input must be fixed-point. For all other inputs, the parameters on the Data Types tab are ignored.

Specify the rounding mode for fixed-point operations as one of the following:

  • Floor

  • Ceiling

  • Convergent

  • Nearest

  • Round

  • Simplest

  • Zero

For more details, see rounding mode.

When you select this parameter, the block saturates the result of its fixed-point operation. When you clear this parameter, the block wraps the result of its fixed-point operation. For details on saturate and wrap, see overflow mode for fixed-point operations.

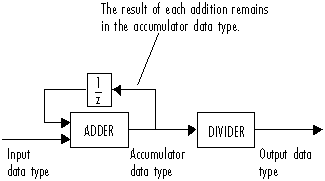

Accumulator specifies the data type of the output of an accumulation operation in the Mean block. See Fixed Point for illustrations depicting the use of the accumulator data type in this block. You can set this parameter to:

  • Inherit: Same as input — The block specifies the accumulator data type to be the same as the input data type.

  • fixdt([],16,0) — The block specifies an autosigned, binary-point, scaled, fixed-point data type with a word length of 16 bits and a fraction length of 0.

Alternatively, you can set the Accumulator data type by using the Data Type Assistant. To use the assistant, click the Show data type assistant button.

For more information on the data type assistant, see Specify Data Types Using Data Type Assistant (Simulink).

Output specifies the data type of the output of the Mean block. See Fixed Point for illustrations depicting the use of the output data type in this block. You can set it to:

  • Inherit: Same as accumulator — The block specifies the output data type to be the same as the accumulator data type.

  • fixdt([],16,0) — The block specifies an autosigned, binary-point, scaled, fixed-point data type with a word length of 16 bits and a fraction length of 0.

Alternatively, you can set the Output data type by using the Data Type Assistant. To use the assistant, click the Show data type assistant button.

For more information on the data type assistant, see Specify Data Types Using Data Type Assistant (Simulink).

Specify the minimum value that the block can output. The default value is [] (unspecified). Simulink uses this value to perform:

  • Simulation range checking. See Specify Signal Ranges (Simulink).

  • Automatic scaling of fixed-point data types.

Specify the maximum value that the block can output. The default value is [] (unspecified). Simulink uses this value to perform:

  • Simulation range checking. See Specify Signal Ranges (Simulink).

  • Automatic scaling of fixed-point data types.

Select this parameter to prevent the fixed-point tools from overriding the data types you specify on the block.

Model Examples

Compute the Mean

Compute the Mean

Simulink model example to compute the mean using the Mean block.

Compute the Running Mean

Compute the Running Mean

Simulink model example to compute the running mean using the Mean block.

Block Characteristics

Data Types

double | fixed point | integer | single

Direct Feedthrough

no

Multidimensional Signals

no

Variable-Size Signals

yes

Zero-Crossing Detection

no

Algorithms

expand all

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
