hggroup
Create group object
Syntax
h = hggroup
h = hggroup(...,'PropertyName',propertyvalue,...)
h = hggroup(ax,...)
Properties
For a list of properties, see Group Properties.
Description
h = hggroup creates a Group object
as a child of the current axes and returns its handle, h.
h = hggroup(...,' creates
a PropertyName',propertyvalue,...)Group object with the property values specified
in the argument list.
h = hggroup(ax,...) creates the Group object
in the axes specified by ax instead of in the current
axes (gca). The option ax can
precede any of the input argument combinations in the previous syntaxes.
A Group object can be the parent of any axes,
as well as other Group objects. Use Group objects
to form a group of child objects that can be treated as a single object.
Examples
Plot random data and parented the lines to the Group object.
hg = hggroup; plot(randn(5),randn(5),'Parent',hg)

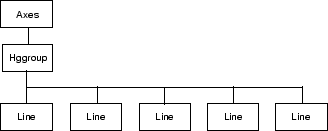

Instance Diagram for This Example
The following diagram shows the object hierarchy created by this example.
