Documentation

Managing UI Components

When you add a UI component to your app, App Designer assigns a default name to the component. Use that name (including the app prefix) to refer to the component in your code. You can change the name of a component by double-clicking the name in the Component Browser and typing a new name. App Designer automatically updates all references to that component when you change its name.

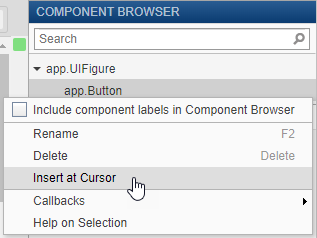

To use the name of a component in your code, you can save some time by copying the name from the Component Browser. Right-click the component name and select Insert at Cursor. Alternatively, you can drag the component name from the list into your code.

To delete a component, select its name in the Component Browser and press the Delete key.

Managing Callbacks

To make a component respond to user interactions, add a callback. Right-click the component in the Component Browser and select Callbacks > Add (callback property) callback.

If you delete a component from your app, App Designer deletes the associated callback only if the callback has not been edited and is not shared with other components.

To delete a callback manually, select the callback name in the Callbacks tab of the Code Browser and press the Delete key.

For more information about callbacks, see Write Callbacks in App Designer.

Sharing Data Within Your App

To store data, and share it among different callbacks, create a custom property. For example, you might want your app to read a data file and allow different callbacks in your app to access that data.

To create a property, expand the Property drop-down in the Editor tab, and select Private Property or Public Property. App Designer creates a template property definition and places your cursor next to that definition. Change the name of the property as desired.

properties (Access = public)
        X % Average cost
end

To reference the property in your code, use dot notation of the form app.Propertyname. For example, app.X references the property named X.

For more information about creating and using custom properties, see Share Data Within App Designer Apps.

Single-Sourcing Code that Runs in Multiple Places

If you want to execute a block of code in multiple parts of your app, create a helper function. For example, you might want to update a plot after the user changes a number in an edit field or selects an item in a drop-down list. Creating a helper function allows you to single-source the common commands and avoid having to maintain redundant sets of code.

To add a helper function, expand the Function drop-down in the Editor tab, and select Private Function or Public Function. App Designer creates a template function and places your cursor in the body of that function.

To delete a helper function, select the function name in the Functions tab of the Code Browser and press the Delete key.

For more information about writing helper functions, see Reuse Code Using Helper Functions.

Creating Input Arguments

To add input arguments to your app, click App Input Arguments in the Editor tab. Input arguments are commonly used for creating apps that have multiple windows. For more information, see Startup Tasks and Input Arguments in App Designer.
